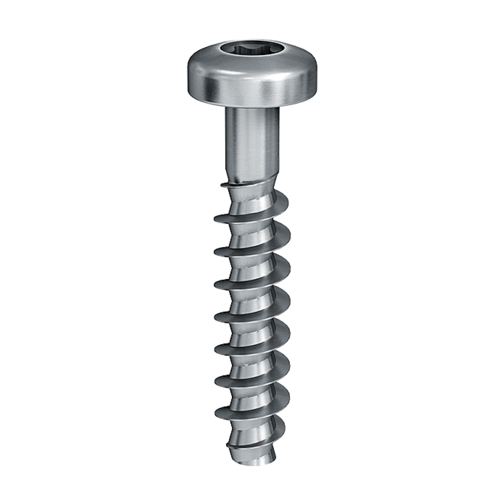

PT®

EJOT_PT_Pos2
EJOT_PT_Pos1
EJOT_PT_Pos3

Specification

  • Overview

    • Standard length: approx. 2 to 10 x nominal diameter (other on request)
    • Standard diameter: from 1 to 10 mm (other on request)
    • Direct assembly saves time and work steps
    • Minimised radial stress allows thin-walled designs
    • High load-carrying capacity due to large thread bearing depth
    • Good self-locking of the screw thread

Hotline

Applications Engineer


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

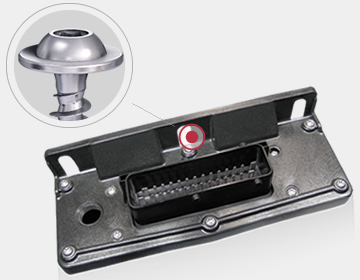

Samorežuće zavrtanje u termoplaste

EJOT PT® je prvi zavrtanj, posebno razvijen za samorežuće zavrtanje u termoplaste. Decenijama je bio etalon za pouzdano direktno zavrtanje u termoplaste. Moguća područja primene ovog elementa spajanja se protežu kroz sve industrijske oblasti. Obzirom da se zahtevi za spajanjem u industriji stalno povećavaju, cilj daljeg razvoja iovako odličnih svojstava ovog elementa spajanja je optimizacija detalja PT® zavrtnja. Delta PT® zavrtanj je rezultat procesa optimizacije. Ispunjava najviše zahteve spajanja u preciznosti i osiguranju spoja, ali nudi i značajne prednosti u upotrebi, npr. podršci u dizajnu uz EJOT DELTA CALC programu za prognozu.®.

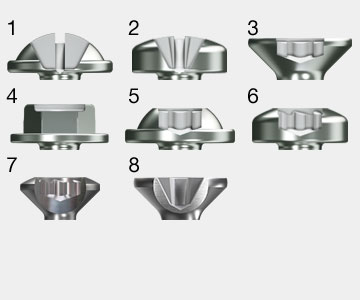

PT® WN 14 Oblici glava i prihvati

WN1411 Zaobljena glava sa podloškom i krstastim prihvatom Z (ili H)
WN1412 Ispupčena glava sa krstastim prihvatom Z (ili H)
WN1423 Konusna glava sa TORX® prihvatom
WN1447 Šestougaona glava sa podloškom
WN1451 Zaobljena glava sa podloškom i TORX® prihvatom
WN1452 Ispupčena glava sa TORX® prihvatom
WN1453 Zaobljena konusna glava sa TORX® prihvatom

Detaljne informacije mogu se naći u EJOT-ovom fabričkom standardu.
To možete preuzeti u našoj korisničkoj zoni "CAD i više".
