EJOT TSSD®

EJOT_EPPsys_TSSD_2
EJOT_EPPsys_TSSD_1
EJOT_TSSD_Waben_Griff

Specification

  • Overview

    • Fastening element and process specifically for sandwich elements
    • Broad application range
    • Especially suitable for honeycomb structures
    • High transmittable tensile forces
    • No corrosion
    • Can be used as screw boss or as direct fastening element

Sebastian Schrodt

Head of Sales EJOWELD


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

EJOT TSSD® Termospajajući deo za spajanje

EJOT TSSD® (Thermischer Stoff-Schluss-Dom - tuljak za spajanje rastapanjem) razvijen je kao proizvod uz prateći proces spajanja sa ciljem da spoji dve komponente, od kojih je jedna (po mogućstvu gornja) od plastike ojačane vlaknima.
Proces je pogodan za sendvič panele sa saćastim ili penastim jezgrom (pokrivnih slojeva od različitih materijala), kao i za CFRP i GFRP materijale.
Tokom spajanja plastični tuljak (izrađen od termoplasta) se utiskuje u plastični proizvod pri određenoj brzini i aksijalnom opterećenju.

EJOT TSSD® for direct assembly

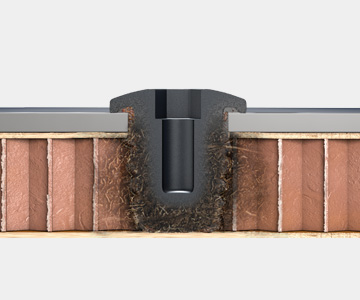

The TSSD® version with collar head is suitable for direct fastening of a thin clamping part to a corresponding component structure. The material of the clamping part can be freely selected - all that is needed is a pre-hole through which the TSSD® can penetrate into the component structure.

EJOT TSSD® as screw-in boss

If the application involves creating a screw-in option in a component, TSSD® variants without a collar head are used. They are inserted flush into the component during the installation process and then act as a screw-in boss for EVO PT® screws with diameters of 4 or 5 mm.


EJOT TSSD® as snap-fit solution

The TSSD® technology can also be used for snap-fit solutions. For this purpose, we offer a variant of the TSSD® with a ball head which -  together with a corresponding counterpart (ball socket) - can be used to create a detachable snap-fit connection.

Customized TSSD® variants

If the EJOT TSSD® standard solutions do not meet your application-specific requirements, please feel free to talk to us about special solutions. Whether it's a TSSD® for defining a distance to the component, a snap-fit TSSD® for welding onto thin monolithic materials, a TSSD® for the non-detachable joining of e.g. circuit boards or a TSSD® for holding eccentric connectors, as is common in furniture construction. Please contact our experts for further advice.
